Quick Details

  • Condition: New
  • Type: Flash Drying Equipment
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: HONGJI
  • Model Number: QLHG-AS
  • Voltage: 220/380V, 220v/380v
  • Power(W): 4-16.5kw
  • Dimension(L*W*H): 12*2.5*4
  • Weight: 1000-3000kg
  • Certification: CE Certificate
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Sawdust,Grain
  • Heating source: Heat Gas
  • Product name: air compressor dryer
  • Installation: Engineer Guide
  • Fuel: coal gas,wood waste,diesel engine
  • Usage: Reduce Material's Moisture
  • Capacity: 300-1200kg/h
  • Product Type: Wood Machine
  • Material: Stainless Steel

Packaging & Delivery

Packaging Details WOOD CASE
Delivery Time Shipped in 5 days after payment
Product Description

1.The detail information of air flow dryer:

1).HJ series single stove dryer:The moisture reducing rate of the dryer series is 8-12%.The sawdust dryer is equipped with one hot air boiler,it is suitable for drying raw material with moisture content less than 20-25%.If the moisture content of the raw material is higher than that,it will need several times of drying to achieve requested moisture content for briquetting;

2).HJ series two stove sawdust dryer:Two boiler sawdust dryer is a newly developed dryer with two hot air boiler,it is suitable for drying raw material with moisture content of 20-45%,it can reduce moisture from 20-45% to 8-12% only one passage or one time.

3)HJ series three stove sawdust dryer:The moisture reducing rate of the dryer series is 8%-12%.The sawdust dryer is equiped with three hot air boiler.it is suitable for drying raw material with moisture content less than 60% or more.

Technical Specifications for air grain dryer machine
Model
QLHG-A
QLHG-B
QLHG-C
QLHG-D
Power (kw)
     4 kw
1 motor
7.5+0.75+0.75 kw 3 motors
11+0.75+0.75 kw
3 motors
15+0.75+0.75 kw
 3 motors
Capacity ( kg/h)
300-400
500-600
700-800
1000-1300
Diameter of feed materials(mm)
1-5
1-5
1-5
1-5
Working Temperature
Stove300℃ / Pipes180-200℃
Consumption of wood waste( kg/h)
10-15
15-20
20-30
25-35
Weight (kg)
1000/1100
2040/2260
2850/3080
2880/3120
Overall size (m)
2.44*1.23*1.9
2.45*1.72*1.91
2.45*1.72*1.91
2.44*1.72*1.91

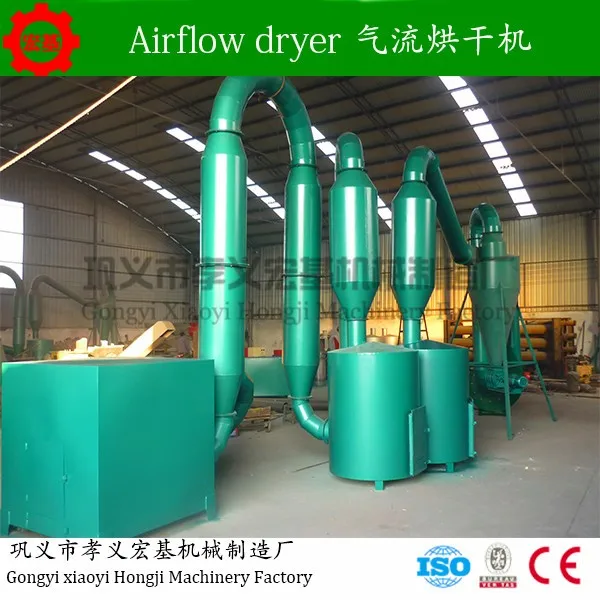

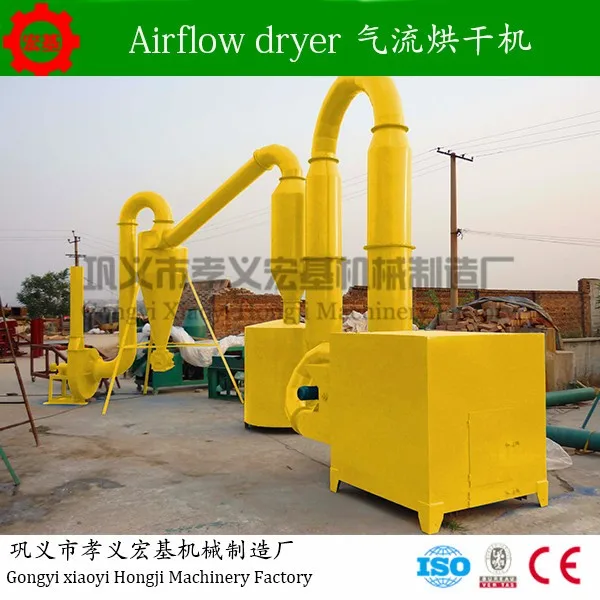

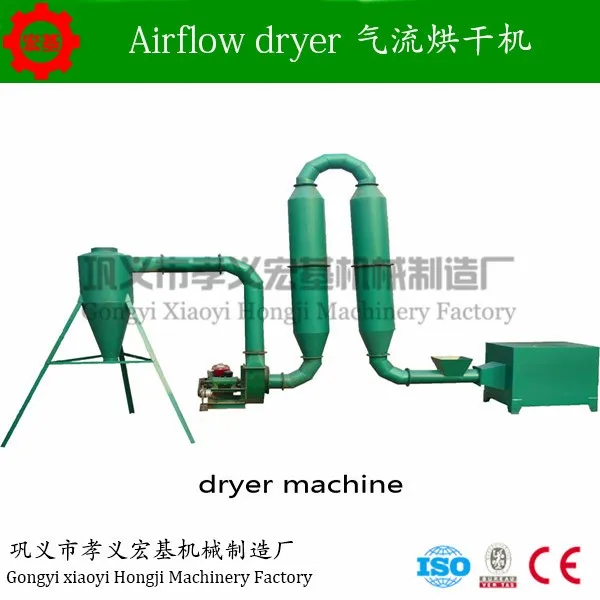

Products Show

Operation principle

The whole system consists of fan blower,motor engine,fuel boiler,steel pipe,cyclone and air lock.In this system,wet materials is input into hopper by screw feeder;

Fuel furnace produces large volumn of hot air.Those hot air is driven into steel pipes,mixed with wet sawdust and moved through curving pipes and drying chamber by the power of fan blower;

Fast moving hot air sustains and it is mixed with raw materials sent by spiral feeder in the suspending state through the steel pipe,moisture evaporates as the material traverses along the steel pipe an it is rendered dry at the discharge end.Humidity air is continuously exhuasted,thus the material is dried.


Our Service

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

Our Company
Packing & Delivery

Packing Details  : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 5-10 days after order of dryer and crusher machine

1. Special logistics packaging
2. confirm the suitable carton size
       3. Fumigation wooden box
4. Professional placement
5. Professional shock
6. Complete package
Our Certifications

Best stainless

Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,

Customer Photo

Favorable Comment

1).For raw materials with heavy humidity which it is above 12%,you need to install a dryer before further processing.This is air current type dryer can reduce the humidity of wood material below 12% per time.The cost of the sawdust dryer is much lower than rotary dryer;

Favorable Comment

2).It is professionally designed for drying different kinds of wood sawdust.It has advantaes of low cost,low consumption,high capacity,easy operation and maintenance,In additiona,the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation;

Favorable Comment

3).Regarding HJ series,it is suitable to process materials which moisture content between 35%-60%.It can reduce the humidity to 8%-12% one drying time.That means it can reduce approx 30% for one drying time.But if the humidity of materials is lower than 35%,the capacity will be increased with less of fuel.

4).All of round places can be adjusted to any angle of 360 degree,according to operation request.The clients can change the angle of dryers base on the production field.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
