Quick Details

  • Application: Biomass Fuel
  • Production Capacity: 99%
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: HONGJI
  • Model Number: ZBJ-II
  • Voltage: 220v/380v
  • Power(W): 22+6kw
  • Dimension(L*W*H): 1.8X0.76X1.29
  • Weight: 585kg
  • Features: High Efficiency
  • Condition: New
  • Certification: ISO&SGS&CE
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 300-350kg/h
  • Diameter of briquettes: 30 40 50mm/60 70 80 90mm
  • Moisture of raw material: 8%-12%
  • Usage: Making Bbq Charcoal Briquette
  • Shape of final briquette: Round
  • Raw Material: Mustard Stalk, Jute waste ,Bamboo Dust ,Tea waste ,Wheat Straw ,
  • raw material size: 3mm ~ 5mm
  • Product name: sawdust briquette machine
  • Density Of Briquette: 1-1.4g/cm3
  • Color: Client Request

Packaging & Delivery

Packaging Details wood case
Delivery Time Shipped in 7 days after payment
Product Description

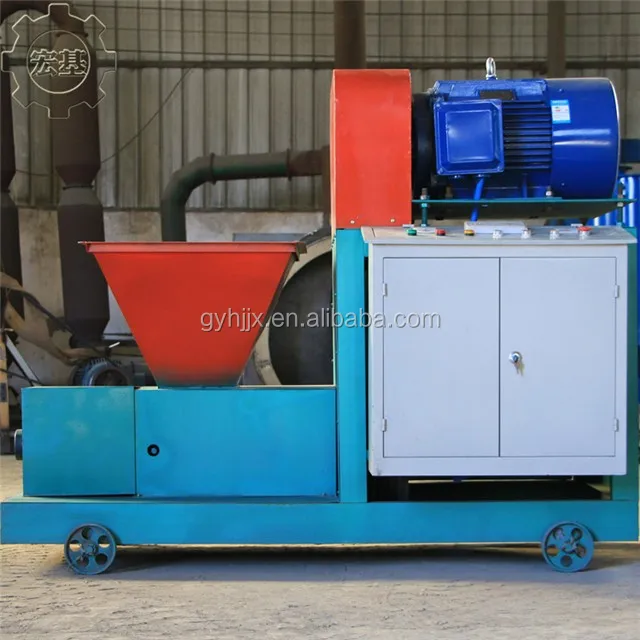

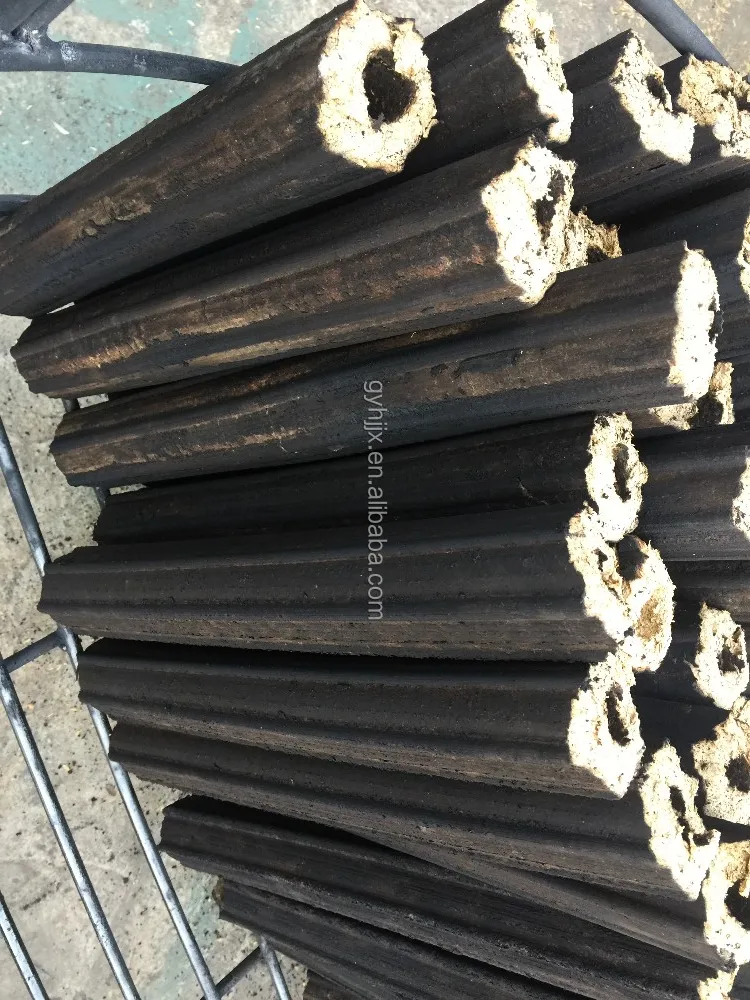

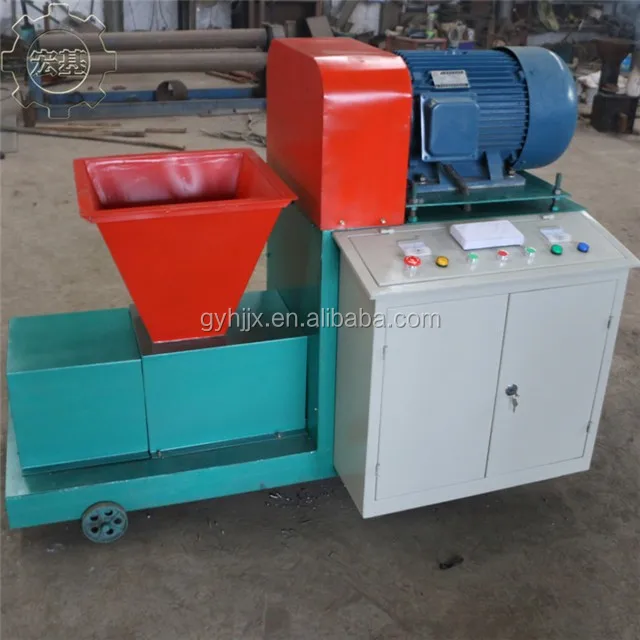

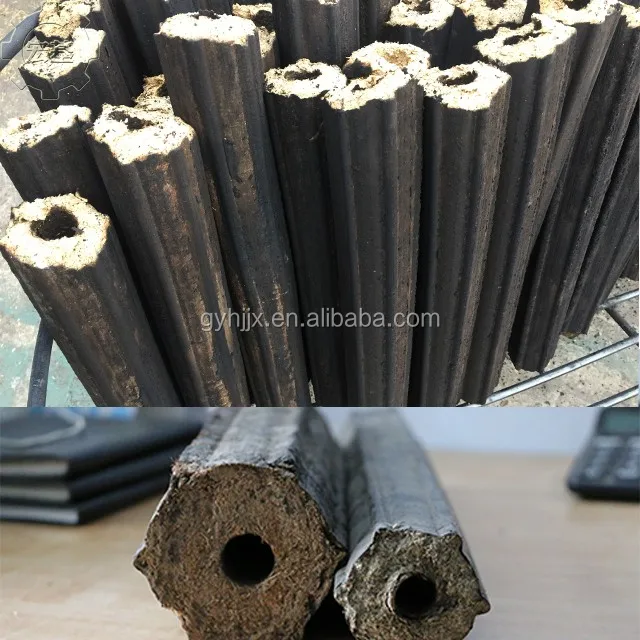

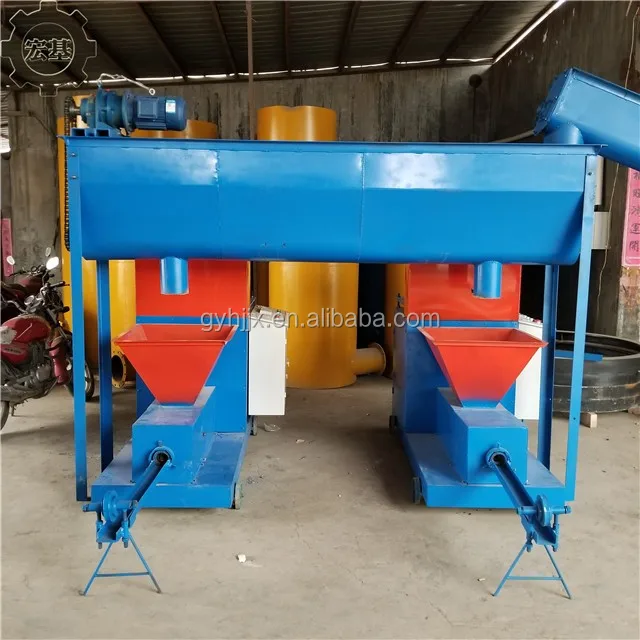

Our biomass briquette machine uses a large screw to  grind, compress and extrude the biomass into  briquettes. The natural lignin content in biomass is  liberated  with wood fiber under high pressure and  temperature. In the briquetting process lignin serves as the glue and combines the particles of wood together,  thus binding, compressing the biomass to form into  various model of high density briquette, such as hexagonal, quadrangular, square, etc. During this process,  non-binder needs to be used.

Raw matetrial suitable for press biomass briquette

1)Any type of Agro-Forestry waste can be used. But the Moisture Content Should be Less than 12%, grain size is below 5×5mm.

2) For example: Sawdust ,Coffee Husk ,Paddy Straw ,Sunflower Stalk, Cotton Stalks ,Tobacco waste ,Mustard Stalk, Jute waste ,Bamboo Dust ,Tea waste ,Wheat Straw ,Palm husk ,Soybeans husk ,Rice Husks Forestry wastes ,Wood Chips and many other Agro wastes.

Moisture: 8-12%,

Size: 3mm ~ 5mm

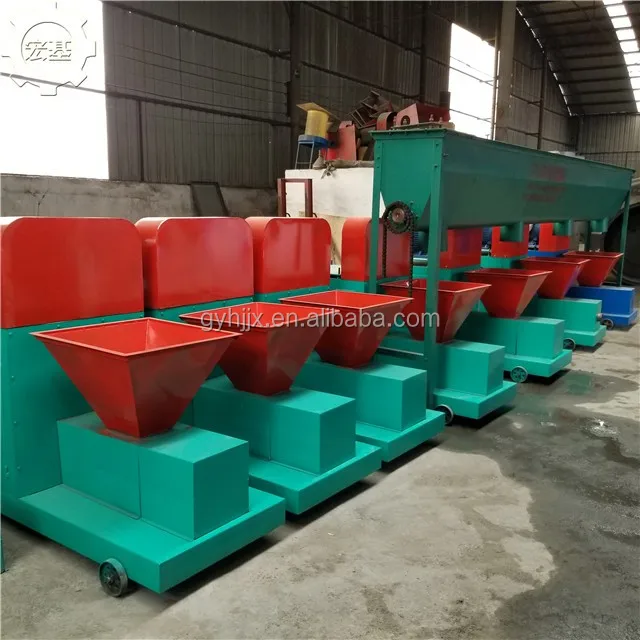

SPECIFICATIONS FOR BIOMASS BRIQUETTE MACHINE
Model

ZBJ-I
ZBJ-II
ZBJ-III
Output( kg/h)
180-210kg
250-300kg
300-350kg
Motor Power (kw)
15+6kw
22kw
22+6kw
Net/Gross Weight(kg)
500/585kg
650/700kg
1080/1180kg
Overall dimension(m)
1.8X0.76X1.29
1.8X0.76X1.29
2.02X0.87X1.5
Diameter of finished products (mm)
30,40, 50mm
30,40,50mm
50,60,70,80,90mm

Main Features

1. No binder or noxious chemical need to use.
2. The humidity of the raw materials is controlled in 8-12%.
3. Using the advanced Hot air drying system with the perfect performance.

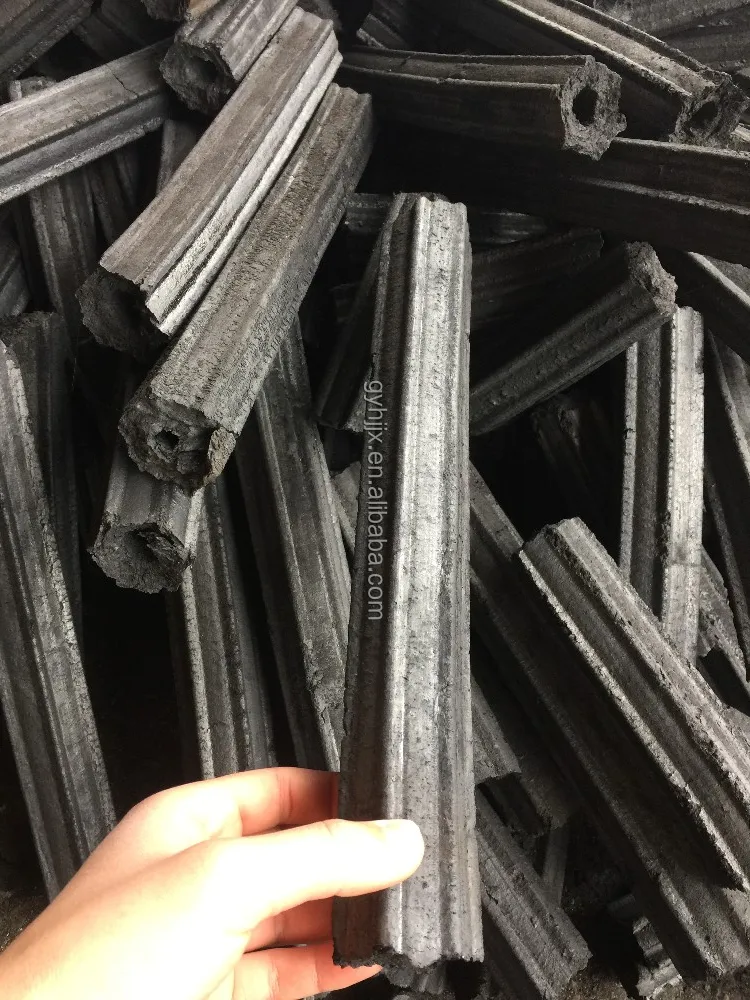

4.After the processing of high temperature, purification, smoke removing, the carbonizing equipment
transforms the semi-finished bio-fuel briquette intoa smoke-free, tasteless, non-toxic cleaning carbon

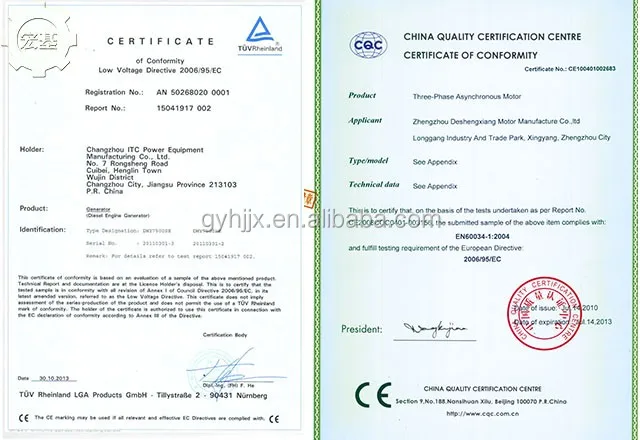

Certifications
Machine accessories

Machine Parts

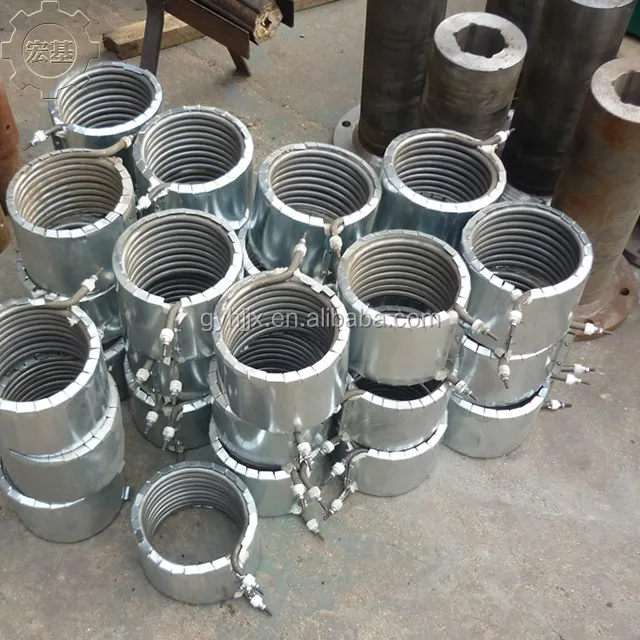

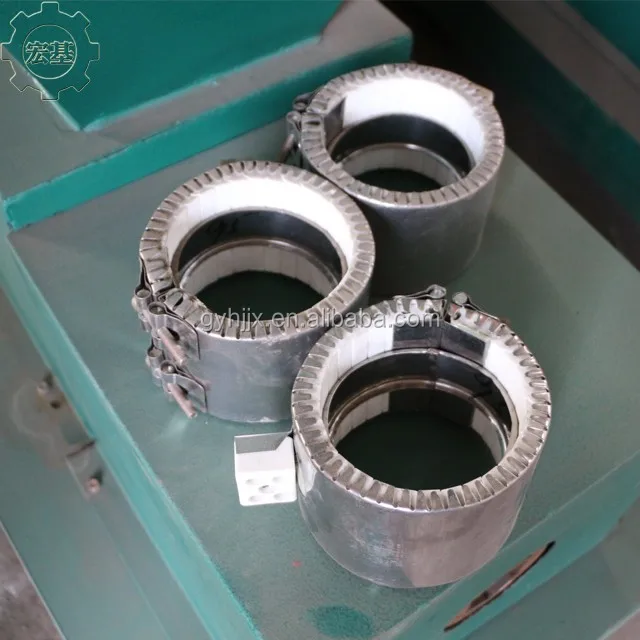

Name:ceramics heating ring

Brand:HONG JI

Domestic famous ceramics heating ring, strong driving force, low fuel consumption, high economic benefits

Machine Parts

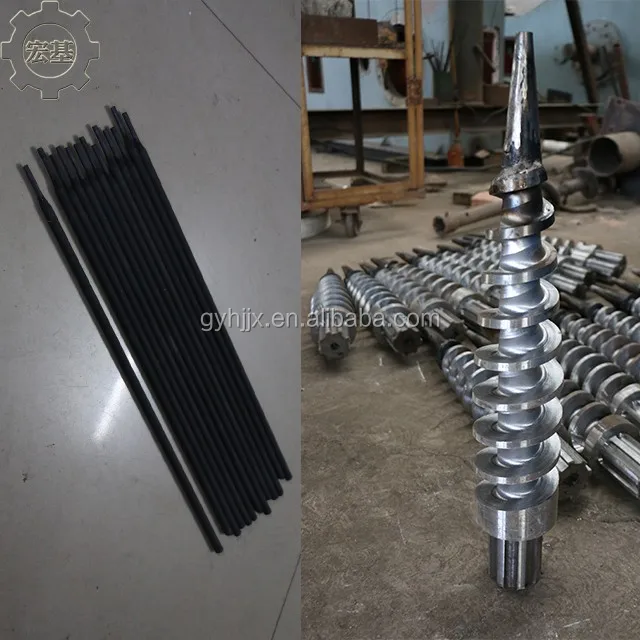

Name: Wear-resistant alloy welding rod
Brand: HONGJI

Domestic famous Wear-resistant alloy welding rod, strong driving force, low fuel consumption, high economic benefits

Machine Parts

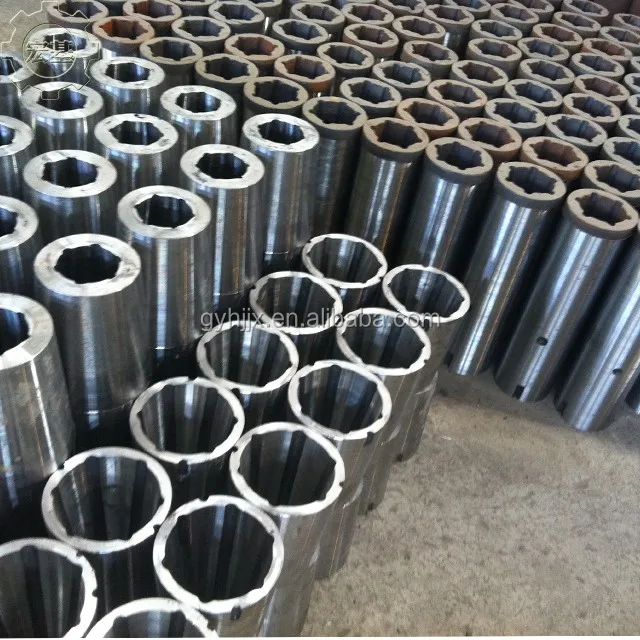

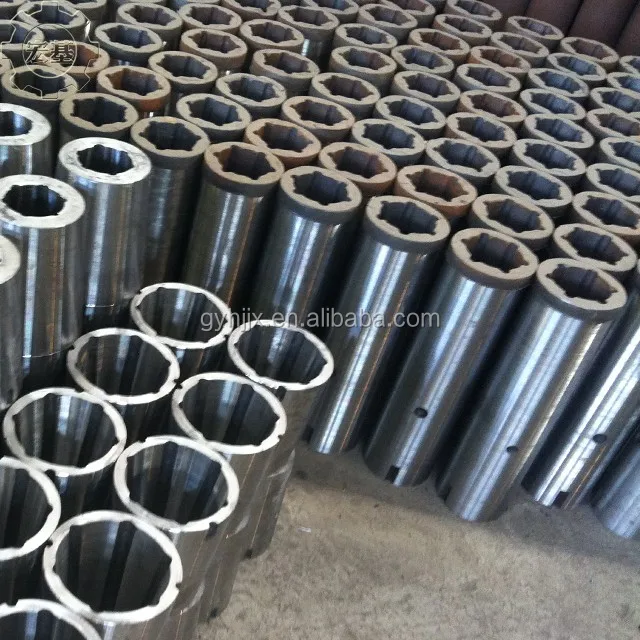

Name: Wear-resistant casing
Brand: HONG JI

Domestic famous Wear-resistant casing, strong driving force, low fuel consumption, high economic benefits

Machine Parts

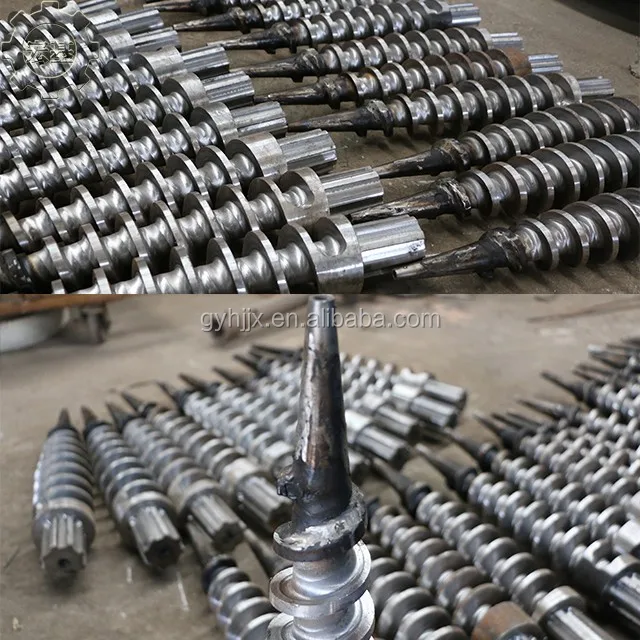

Name:Propeller
Brand: HONG JI

Domestic famous Propeller, strong driving force, low fuel consumption, high economic benefits

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
ZBJ-I  ZBJ-II Packaging
Size
180(L) * 76(W) * 129 (D)
Weight
585-700KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
ZBJ-III Packaging
Size
202 (L) * 87 (W) * 150 (D)
Weight
1180KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
