Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Hongji
  • Model Number: XNY-1000C
  • Voltage: 220v
  • Power(W): 45KW
  • Dimension(L*W*H): 3.5*1.8*1.7M
  • Weight: 8000KG
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Power: 45 kw
  • Output: 1000 kg/h
  • Material moisture: <15%
  • Gross weight: 8000 kg
  • Diameter of final product: 80 mm
  • Density: 1-1.2 g/cm³
  • raw material: sawdust,wood chips, waste paper
  • Heating value: 3700-5000 kcal
  • factory experience: over 10 years
  • other name: briquette making machine

Packaging & Delivery

Packaging Details outsiede: standard export wooden case
Inner: stretch film
Delivery Time within 15 days after deposit

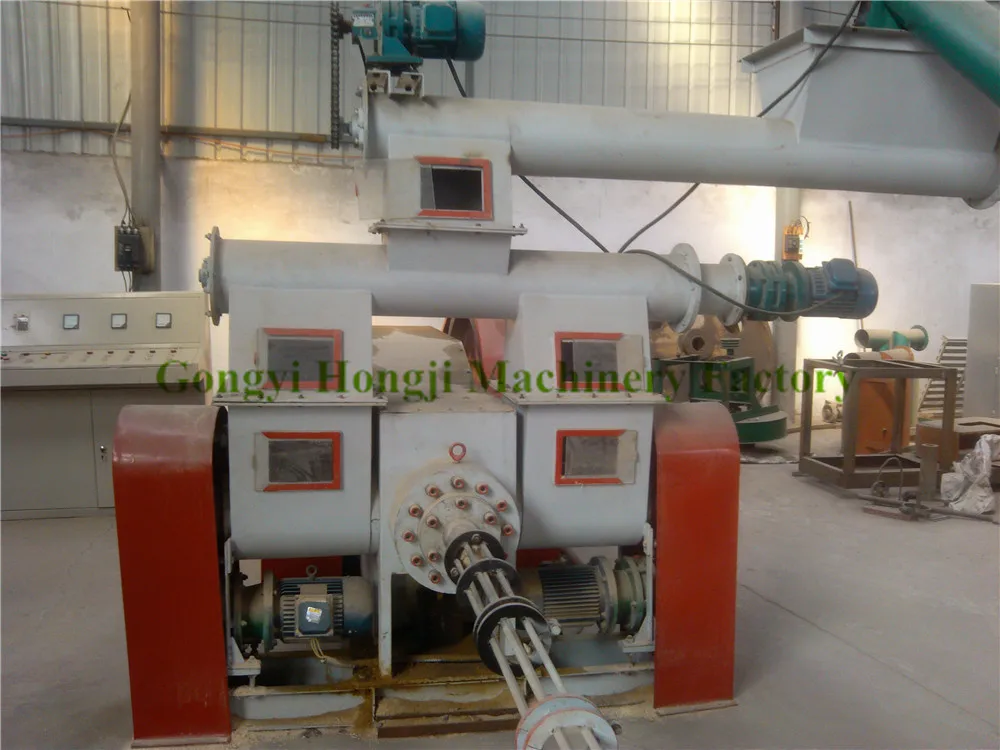

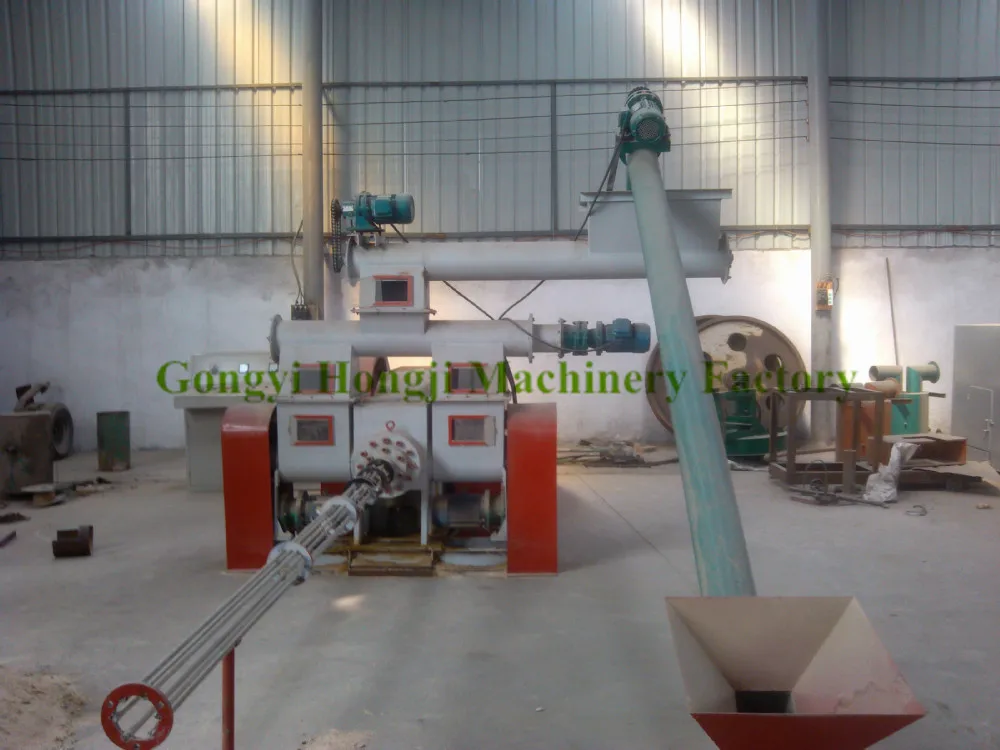

 capacity 1ton/h 60 mm cylinder briquette piston press machine

Product Description

 Due to the increase on cost of conventional fuel (such as coal and natural gas) and the need for new energy resources, more people start to focus on Biomass fuel business. Biomass briquette is renewable, clean, eco-friendly energy, especially for agricultural countries. Leabon-1000 Series briquette press can make cylinder shape fuel briquettes from biomass and agro-forest waste.

The piston briquette machine include



1.Belt conveyor

2.Feeding hopper

3.Main press machine

4.Control cabinet

5.Oil cooling equipment

6.Output line





Environmental parameters of Briquette press machine



1.Density of briquette :0.8-1.3g/cubic centimeters

2.Heating value :3700-5000kcal

3.Sulfur dioxide emissions: 0.38%

4.Carbon dioxide emissions: 0.22%

5.Ash content 3.6%, and the ash could be recycled as agricultural potash,which can realizes green recycling.



Features of biomass briquette machine:



(1) NO binder needed during production to make clean & green fuel briquette.



(2) Quantity of heat of final product is 500-1000Kcal higher than raw material.



(3) Can replace firewood and liquefaction gas, with less investment.



(4) Small cubage and easy for transport







Technical Spects

Model: XNY-1000C
Main power: 45KW
Production capacity: 1000 kg/h
Application material: sawdust,wood chips,wheat straw,etc
Install size: 3500*1800*1700mm
Packing size: 3500*1800*1700mm
Machine weight: 8000kg
Final briquette diameter: 6mm,8mm,10mm,60mm,70mm,80mm,90mm
Briquette shape: round





The raw materials



Wood Waste Material
Most wood waste is suitable for briquetting depending on its content of lignin as well as the moisture

content and particle size etc.

Demolition wood

Different kinds of demolition wood are available in an increasing amount around us and it can be turned into

valuable fuel briquettes for private consumers or industrial use.

Agricultural wast

Agricultural wastes such as organic wastes typically animal wastes or dead plants, are usually not harmful to

the environment; on the contrary, they can enrich the soil with nutrients and minerals.

Alternatively agricultural waste like straw and stalks etc. is also very suitable for production of briquettes.

Paper and cardboard





Finished goods

This machine can make both wood pellet and wood briquette .

The diameter is changeable.

Our Services

1. If you need, we can send technical staff to your factory to help installation.

2. All parts of machine offered.
3.12 months warranty. Online helpline

Packaging & Shipping

Packaging and shipping of our machines:



1. All the machines will be wrapped up with plastic film first (including the motor).

2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box,

put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.





FAQ



1. Q: What is the raw material can be used to make briquettes?

A: All biomass material, waste paper can also be used.

2. Q: what is the size of raw material?

A: less than 2cm

3. Q: what is the moisture of raw material?

A: lower than 15%

4. Q: could you supply complete production line?

A: Yes

5. Q:What is the warrenty of your machinery?

A: One year







Company Information

 We are the earliest factory in manufacturing charcoal machines. Our workers have experience more than 10 years.

If you have any quesitons about our machines, please don't hesitate to contact with me.
